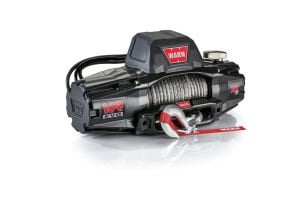

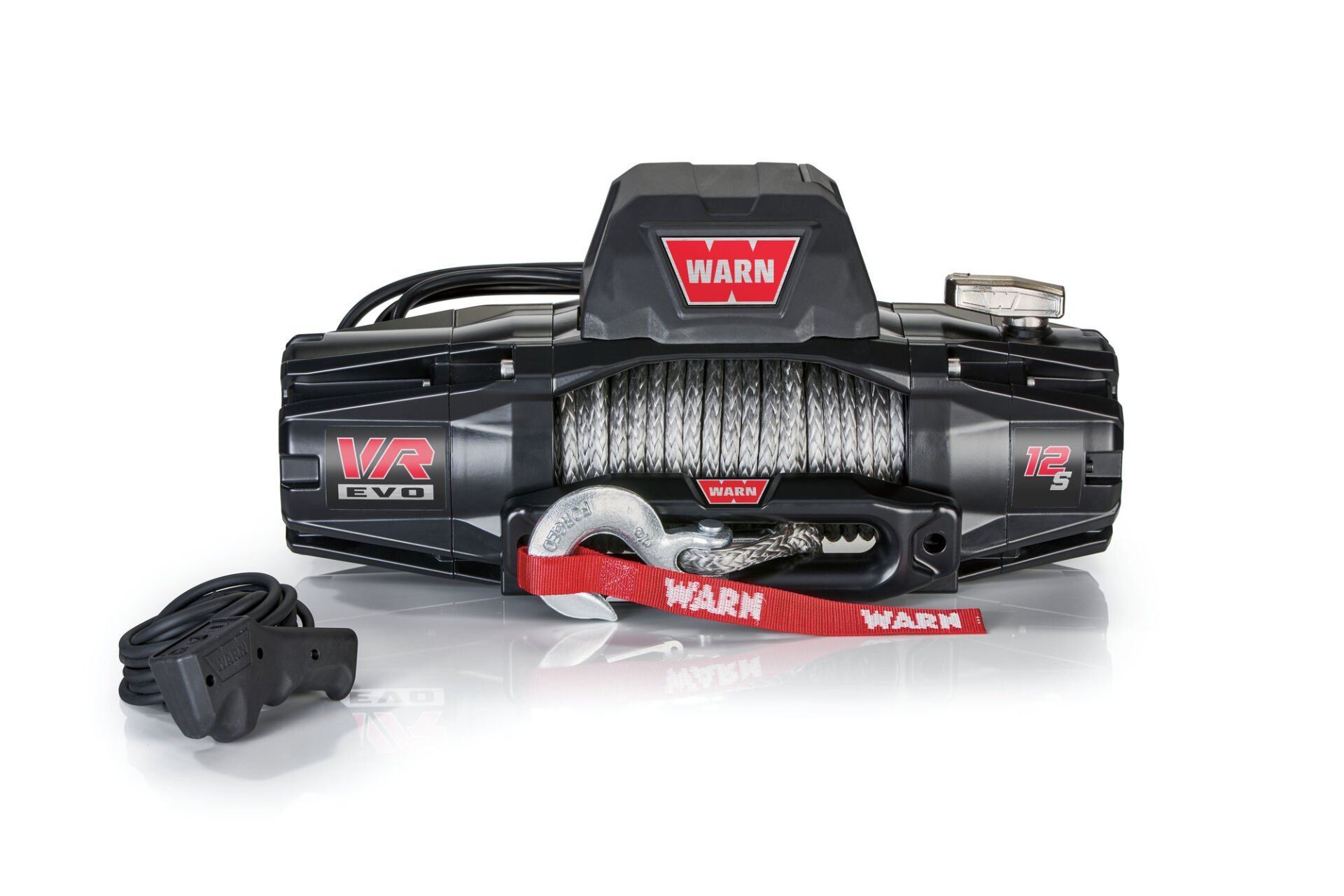

| VR EVO 12, VR EVO 12-S SPECS/PART NUMBERS |
| Part Numbers: PN 103254 (VR EVO 12), 103255 (VR EVO 12-S) |
| Rated Line Pull: 12000 lbs (5443 kgs) |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Albright Contactor |
| Remote Control: Wired Remote 11.5' (3.5m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 234:1 |
| Clutch (freespooling): Rotating Ring Gear Clutch |
| Brake: Spring Brake |
| Drum Diameter/Length: 2.5"/9.0" (6.73cm/23cm) |
| Weight: Shipping Steel - 90.81 lbs (41.19 kgs), Shipping Synthetic - 72.27 lbs (32.84 kgs) |
| Rope: Steel - 3/8" x 85' (9.5mm x 25.9m), Synthetic - 3/8" x 90' (9.5mm x 27.4m) |
| Fairlead: Steel - Roller, Synthetic - Die Cast Hawse |
| Recommended Battery: 650 CCA min. for winching |
| Battery Leads: .098" x 6.5' (25mm x 2m) |
| Finish: Powder coat finish over primer undercoat |
| Warranty: Limited Lifetime |
| VR EVO 12, VR EVO 12-S: 12V DC Performance Specs (based on first layer of drum) | |||
| Line Pull Lbs (Kgs) |
Line Speed Ft/min (M/min) |
Motor Current |
Pull by layer layer/Lbs (Kgs) |
| 0 | 26.2 (8.0) | 55 amps | 1/12000 (5443) |
| 2000 (910) | 13.9 (4.2) | 120 amps | 2/9801 (4446) |
| 4000 (1810) | 9.5 (2.9) | 178 amps | 3/8283 (3757) |
| 6000 (2720) | 8.1 (2.5) | 234 amps | 4/7173 (3254) |
| 8000 (3630) | 6.8 (2.1) | 288 amps | 5/6324 (2869) |
| 10000 (4536) | 4.9 (1.5) | 337 amps | |
| 12000 (5440) | 4.0 (1.2) | 396 amps | |
